EV High-Voltage Cable
-
EV Charging cable
ISO Aluminum Core HV Cable
ISO Aluminum Core EV HV Cable
Reference standard: ISO 19642-2019-6、IS0 19642-2019-10
PRODUCT DESCRIPTION

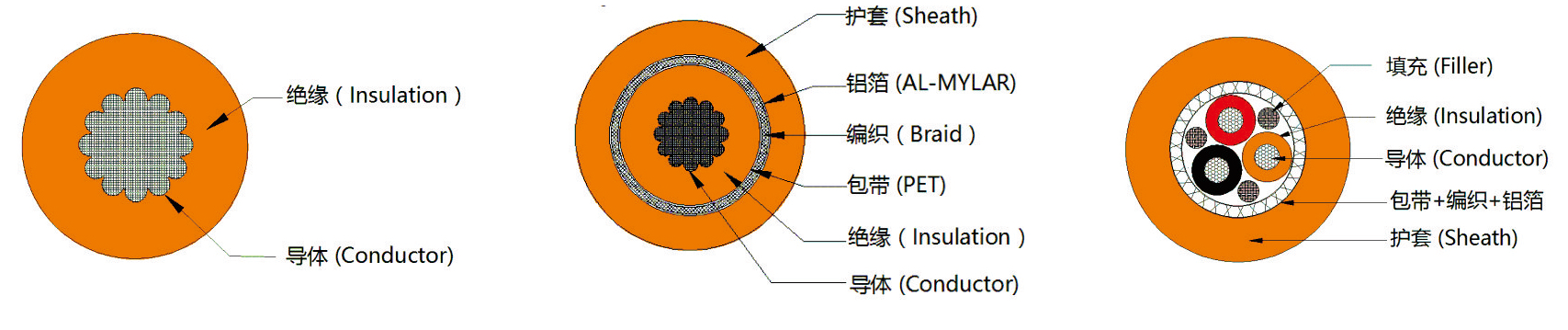

Construction
Features
1.Conductor
1.Rated temperature ：-40℃～+(125℃, 150℃)
Material: AAL
2.Rated Voltage：AC 600V/DC 900V;AC 1000V/DC 1500V
2.Insulation
3.Short-term Aging：240h,Comply with ISO 19642-2019
Material：XLPE
4.Long-term Aging： 3000h,Comply with ISO 19642-2019
Color：Orange
5.Flame Test：Comply With ISO 19642-2019
3.Shielded
6.Min：Bending Radius: 6*OD@OD﹤15mm ; 8*OD@OD≧15mm
Material：Tinned Copper
7.Dielectric Voltage：5kVac/5min. No Breakdown
4.Sheath
8.Oil Resistance：Comply With ISO 19642-2019
Material: XLPE
9.Anti-tear Performance ：>15N/mm
Color：Orange
10.Environmental Requirements ：Compliant with RoHS 2.0 and REACH
Aluminum conductor specifific structure size according to the standard
Nominal conductor cross-section mm 40.90 37.90 0.743 0.688
Strand
Conductor
Quantity
Diameter
Diameter
Twistength
Cross-section
Resistance at +20°C
Al
Cu
Al
Al
Al
Al
Al
Bare Al & Cu
mm²
mm²
PCS
mm
mm²
mΩ/m
nom
nom
nom
max
max
max
max
min
max
10
6
49
0.51
4.30
not specified
9.81
9.09
3.100
2.870
17
10
84
0.51
5.50
16.70
15.50
1.820
1.690
27
16
133
0.51
7.00
26.20
24.30
1.160
1.070
42
25
210
0.51
9.00
59
35
294
0.51
10.60
57.70
53.50
0.527
0.488
85
50
420
0.51
12.90
82.70
76.50
0.386
0.341
120
70
608
0.51
15.10
117.00
109.00
0.259
0.240
160
95
798
0.51
17.90
155.00
144.00
0.196
0.181
